10,000 layers in one chicken house

Time : 2024-05-06

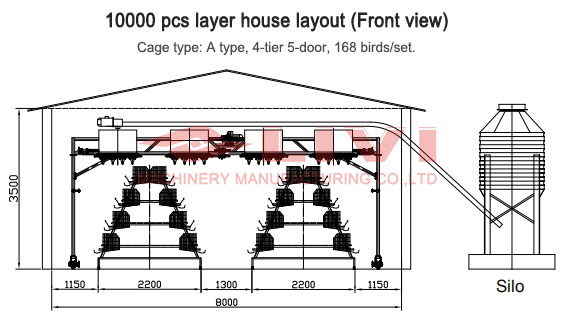

Cage type: A type, 4 tier, 5 door, 160 birds/unit.
Chicken cage layout: 2 rows/house, 32 units/row, 64 units/house.
Size of the chicken house: 72M * 8M * 3.5M.

Total capacity of one chicken house: 10240 birds/house.

Chicken cage: 64 units.

Automatic feeding machine: 1 sets, gantry feeding machine , 1 set can control 4 rows.
Scraper manure removing system: 1sets, one set drive 2 rows.
Automatic egg collecting system: 2 sets, each row one set.
Ventilation system:
  1. Cooling fan: 6 sets, size: 1.4M * 1.4M, installed on the behind of the wall.
  2. Cooling pad: 6 Pcs, size: 2.5M * 2M, installed on the front & side of the wall.
  3. Small side windows: 48 Pcs, size: 600mm * 300mm, installed on the side wall.
Environmental controlling system: 1 set.

Livi Machinery - professional poultry farming equipment manufacturer
